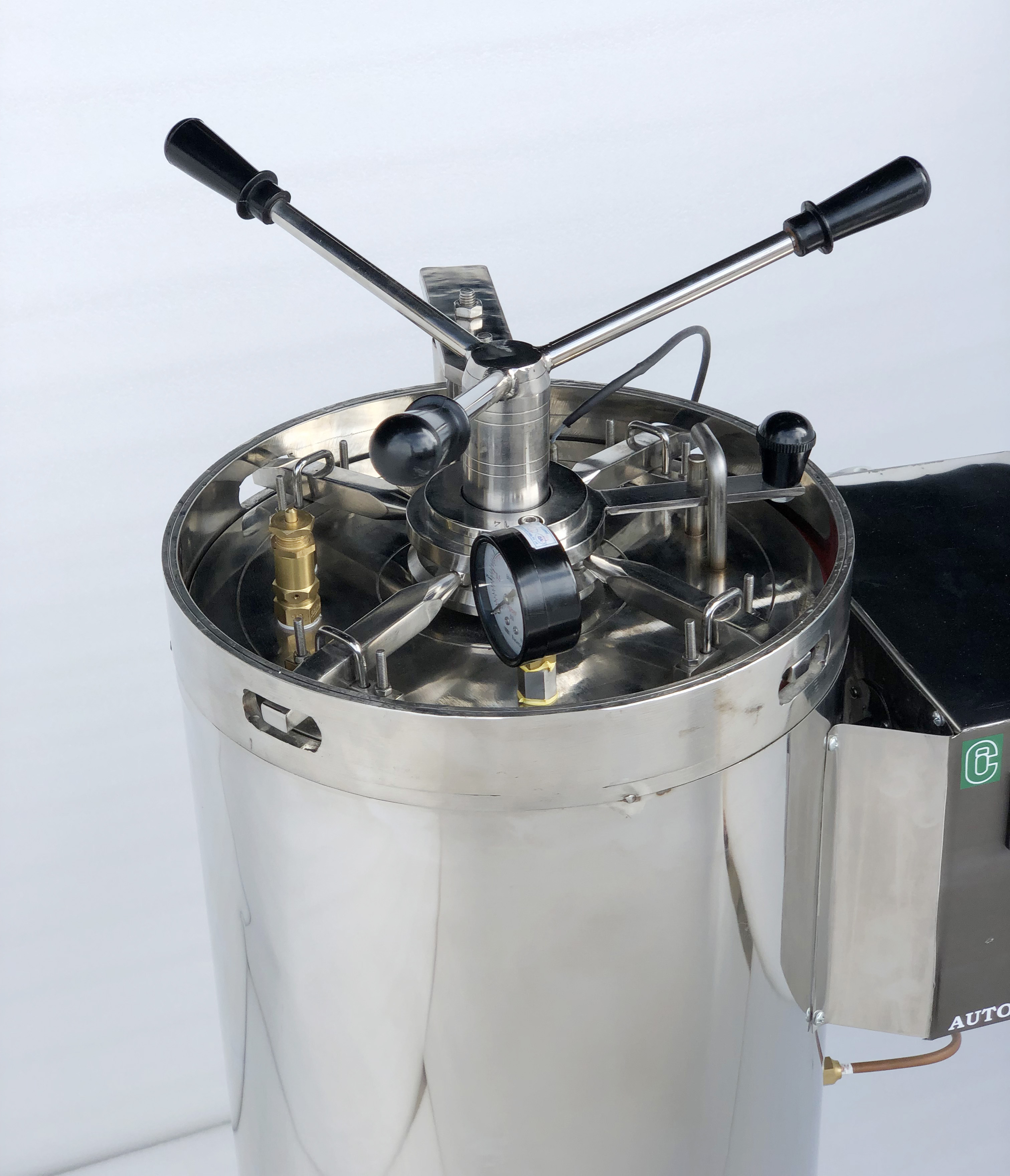

'CI' AUTOCLAVES-DIGITAL

Code: 12012-01

APPLICATION:

“CI” Fully Automatic Vertical Autoclaves are ideal for all kinds of applications requiring assured and reliable total destruction of all living microorganisms.

Used in R & D’s, Pharmas , Microbiology, Chemical Plants, Labs, Waste treatment, Water & Air Pollution Labs, Fisheries, Mineral Water, Food, Beverage & Distillery Plants, Flight Kitchens, Hotels, Hospitals, Nursing Homes, Polyclinics, and all other applications which requiring sterilization.

Autoclaves are used for sterilization under saturated steam pressure.

Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm

CONSTRUCTION:

* Triple walled chamber assembled on a stand.

* Inner chamber and boiler is made from thick gauge stainless steel including top lid.of SS304

* Outer cover made of stainless steel sheet (304 grade).

* Ceramic wool / Glass wool insulation (between inner and outer chambers)

* Fitted with neoprene rubber gasket for leak proof operation.

* Flanged type Immersion heaters.

* Working pressure 15 lbs.

* Max. pressure 20 lbs.

* Working Temperature 120C

* Pedal lifting arrangement for top lid.

Complete with Manual Radial locking system, Heating element, Pressure gauge, Spring loaded Mechanical safety valve, Steam release cock, Drainage tap, Water level indicator, Pedestal lifting arrangement, Automatic pressure control switch. S.S. perforated basket ( ) Operated on 230V AC mains, 50 Hz ,Single phase,

OR

Operated on 440V AC mains, Three phase,

OPTIONALACCESSORIES

* Digital Temp. Controller-cum-indicator with pt-100 Sensor and microprocessor based digital programming timer.

* Data Logger

* Digital timer

* S.S. Basket

* GLP Compliance

* Touch Screen wit 100% GLP Compliance.
