SELF IGNITION TEST APPARATUS

Code: 25004-00

COMPLIANCE :


* European Commission Directive 92/69/EEC, method A16:


* NF T 20-036 (September 85). Chemical products for industrial use. Determination of the relative temperature of the spontaneous flamability of solids.

APPLICATION :


Useful as a preliminary screening test for solid substances. In view of the complex nature of the ignition and combustion of solids, the self-ignition temperature determined according to this test method should be used for comparison purposes only.



Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm

DESCRIPTION AND CONSTRUCTION:

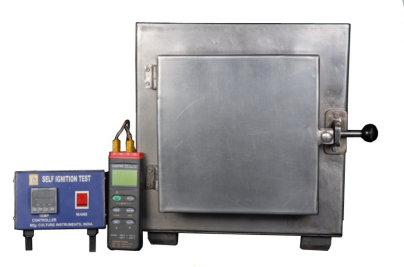

25004-00 Self-Ignition Temperature Apparatus - Basic


It consists of an explosion proof all SS oven with provision to suspend a mesh cube containing the powder sample with 2 temperature sensors to monitor and record sample and oven temperature.The temperature is monitored using an external datalogger and analysed post the test time period.

25004-01 Self-Ignition Temperature Apparatus - Automatic


It consists of all the above, but instead of an external datalogger, the


system it is provided with a 5", user friendly Colour touch screen


integrated controller cum high speed data acquisition.


The various advantages of this system are as below


01. 5" Colour touch screen with user friendly interface


02. Automatic shutdown at end of test


03. Automatic detection of Self ignition temperature- regular


04. Automatic shutdown if sample melts without ignition


05. Software free, hence no issues of licensing.


06. Automatic Report generation


07. High speed Data acquisition


08. 100% GLP compliance


09. Automatic Sensor(s) failure detection


10, LAN Enabled, hence does not require a dedicated PC

STANDARD ACCESSORIES/PARTS


25004-xx All SS Heavy duty Oven with slow heating rate


upto 400°C:                                                              01 Set


25004-02 2 Channel Data logger with Sensors :     01 Set


25004-03 SS Mesh sample holder:                         01 No.

OPTIONAL ACCESSORIES


25004-03 Spare SSMesh sample holder


25004-04 Spare heater                                            01 Set


25004-05 Spare Chamber Sensor                           01 No.


25004-06 Spare Sample Sensor                             01 No.


25004-07 Spare Mesh Basket                                 01 No.

P.CODE      MODELS

25004-00 -              SI-B Basic

25004-01 -              SI-A Automatic

PRE-INSTALLATION ON-SITE REQUIRMENTS

A sturdy platform or table

Power : 15A, 3 pin power supply
