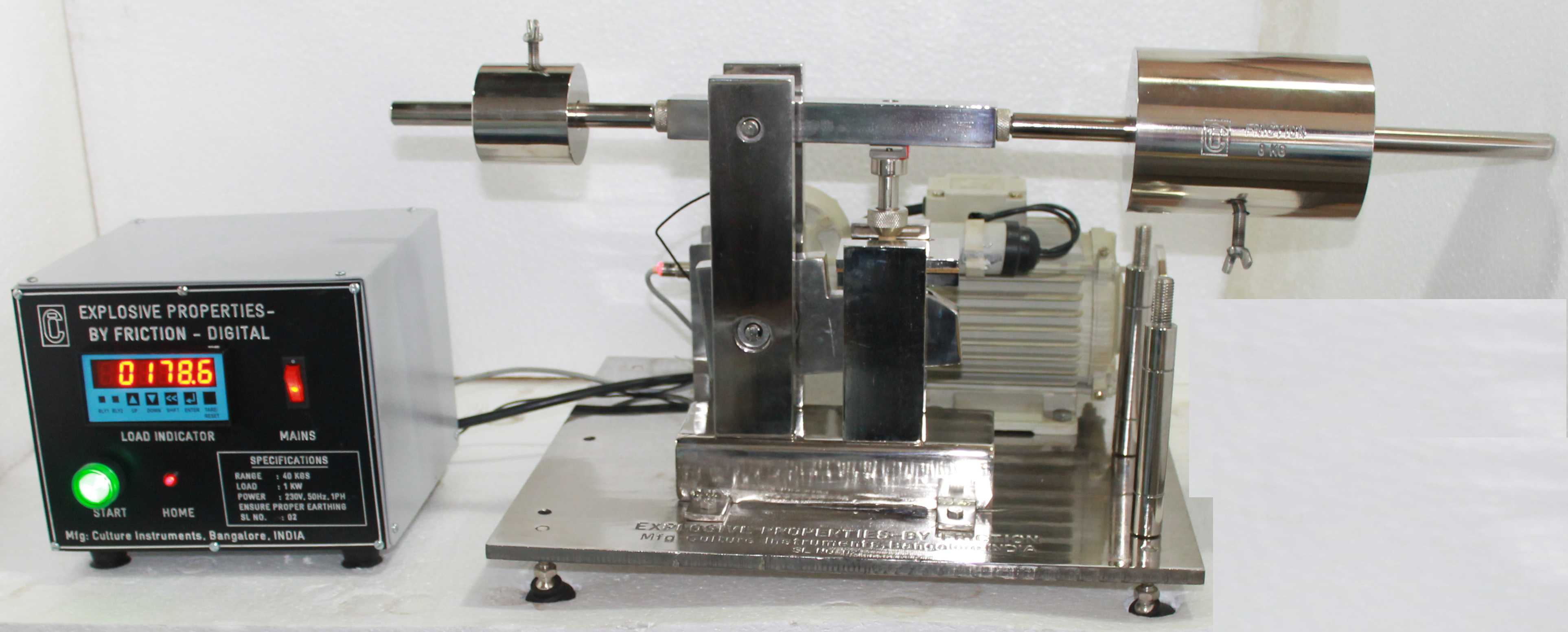

'CI' EXPLOSIVE PROPERTIES - FRICTION

Code: 25003-00

COMPLIANCES :


* UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria, United Nations, New York, 2003 [13.4.2 Test 3(b)(i)]


* EN 13631-3:2004–Explosives for civil uses-High explosives-Part  3:


Determination of sensitiveness to friction of explosives


* European Commission Directive 92/69/EEC, method A14: Explosive properties


* STANAG 4487


* MIL-STD-1751A: Safety and Performance Test for the Qualification of Explosives(High Explosives, Propellants, and Pyrotechnics), Method 1024: BAM Friction Test


* TB 700-2, DoD Ammunition and Explosives Hazard Classification Procedures (2012),Section 5-3d


* Energetic Materials Testing & Assessment Policy Committee Manual of Tests, Volume 1, Issue 4, Nov 2007 (EMTAP TESTING); Test No 44


* GB/T 21566-2008: Test method for friction sensitivity of explosives substance

APPLICATION :

To examine the sensitivity of solids and pastes to sliding (frictional) contact.

Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm


FULLY AUTOMATIC MODEL :BFA-A (P.CODE:25003-02)FEATURES


Servo/Stepper drive motor with variable speed upto 300rpm


All SS construction.Mounted on a sturdy SS table with antistatic rubber sheet.Digital indication of Load Reduced number of dead weights.Only 1 loading Arm required, hence no need for interchanging and hence reduced testing time.Also provided with a screw based loading system, making it very easy for any body to operate the instrument.Touchscreen user interface with recording and REPORT GENERATION.Data logging of Sample details, Load, Speed and Result with Date/Time Stamp Programmable motorised loading


PC based Video recording of the test.


Operation on 230 or 110V.


MODEL COMPARISON


SPECIFICATION    25003-00     25003-01       25003-02


MODELS                  BFA-O         BFA-B            BFA-A


LOADING RANGE             0-360N             0-360N                   0-500N


MINIMUM LOAD                     5N                   1N                         0.1N


LOADING LC                           NA                  1 N                         0.1N


LOADING DISPLAY                NA               PROVIDED      PROVIDED


ALTERNATE LOADING SYSTEM NA         PROVIDED     PROVIDED


MOTOR Geared       AC motor Geared AC motor Stepper/Servo Motor


TEST RPM                            FIXED                 FIXED         VARIABLE


SUCTION DEVICE                   NA                OPTIONAL    PROVIDED


SAFETY SHIELD                      NA                OPTIONAL    PROVIDED


VIDEO RECORDING FACILITY NA                    NA            OPTIONAL


SMOKE DETECTION FACILITY NA                    NA           OPTIONAL


AUDIO RECORDING FACILITY NA                    NA           OPTIONAL


DATA RECORDING FACILITY    NA                    NA          PROVIDED


SAMPLE SCOOPS              OPTIONAL      OPTIONAL     PROVIDED


PC INTERFACE                          NA                    NA           PROVIDED

P.CODE          MODELS

25003-00      BFA-O            Motorised carriage with cantilever loading


25003-01      BFA-B             Motorised carriage with Digital Display and Precise loading


25003-02      BFA-A           Stepper/Servo carriage with Digital Display, Precise loading and Touch Screen User interface with variable speed

STANDARD ACCESSORIES/PARTS


25003-03        Porcelain Peg (pack of 50)                1 Pack


25003-04        Porcelain Plate (pack of 50)               1 Pack

OPTIONAL ACCESSORIES


25003-09       Spare Digital Load Indicator                 1 Set.


25003-10       Spare Load Sensor                              1 No.


25003-11       Calibration certificates                          1 Set

PRE-INSTALLATION ON-SITE REQUISITES

A Level base/floor or a sturdy platform or table

Power : 5A, 3 pin power supply

Test Sample
