'CI' FLOW CUP VISCOMETER (IS101)

Code: 10002-01


The ‘CI’ Flow cups, are designed to perform quick viscosity and consistency


evaluations of newtonian or near newtonian products.


Viscosity is nothing but thickness or resistance to pouring, or in other


words viscosity is the measure of resistance to flow.


COMPLIANCE

As per ASTM D 2602,5293, SAE J300

APPLICATION


To determine the Apparent viscosity of Engine oils, Lubricating Oils and Base Stocks.

Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm

FLOW CUP VISCOMETERS


‘CI’ Manufactures and Supplies wide range of Viscosity Flow cups


and Dip cups.The ‘CI’ Flow cups, are designed to perform quick viscosity and consistency evaluations of newtonian or near newtonian products.Viscosity is nothing but thickness or resistance to pouring, or in other words viscosity is the measure of resistance to flow.


The measured viscosity is generally expressed in seconds.


* Provide good degree of accuracy and repeatability.


* Simple and easy to use.


* These cups cover a wide range of viscosities in accordance with


international standards.


* They are made of high quality Aluminium / Brass,


* Stainless Steel inner orifice.


* Standards conforming to ASTM / BS / DIN / BIS / ISO / EN / AFNOR.


* Each cup is engraved with serial number, standard and type


* All cups come with our confirmatory certificate.


* To be used with stand.

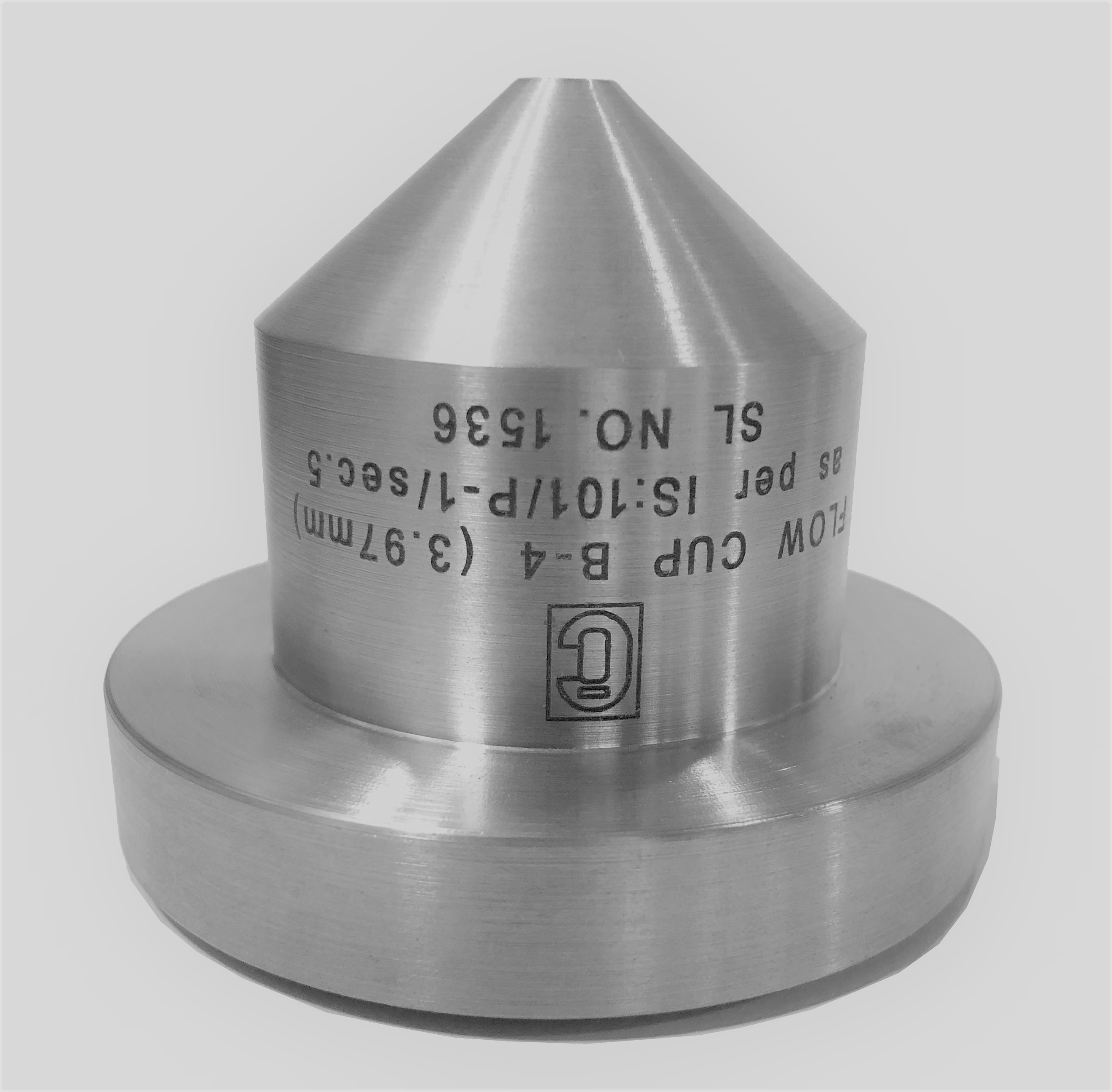

IS 101 VISCOSITY FLOW CUP


STANDARD      NO. RANGE     ORIFICE                         CODE


                                          DIA. (mm) Aluminum Brass


                           2        2.38             10002-01                10002-02


                           3        3.17              10002-03               10002-04


IS:101/Part-1/     4        3.97              10002-05               10002-06


Sec 5/1999         5        4.76              10002-07               10002-08


                           6         7.12              10002-09               10002-10



* Provide good degree of accuracy and repeatability.


* Simple and easy to use.


* These cups cover a wide range of viscosities in accordance with


international standards.


* They are made of high quality Aluminium / Brass,


* Stainless Steel inner orifice.


* Standards conforming to ASTM / BS / DIN / BIS / ISO / EN / AFNOR.


* Each cup is engraved with serial number, standard and type


* All cups come with our confirmatory certificate.


* To be used with stand.
